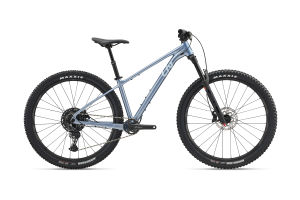

Lurra

$1,499.00 Original price $1,899.00

Skip to compare section

Techs & Features

ALUXX Aluminum Technology
OverDrive
PowerCore
Tubeless System

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
  • XS (27.5")
      150 cm4’11” to 163 cm5’4”
  • S (27.5")
      158 cm5’2” to 169 cm5’7”
  • S (29")
      158 cm5’2” to 169 cm5’7”
  • M (29")
      164 cm5’5” to 175 cm5’9”
bike diagram with measurements referenced in table that follows
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
 XS (27.5")S (27.5")S (29")M (29")
A Seat Tube Length (mm) (inch)36014.2380153801541016.1
A1 Seat Post Insertion Depth (mm) (inch)29011.429011.429011.434013.4
B Seat Tube Angle (degrees)76.0°76.0°76.5°76.5°
C Top Tube Length (mm) (inch)54421.456422.255421.857522.6
D Head Tube Length (mm) (inch)953.71054.1903.51003.9
E Head Tube Angle (degrees)66.0°66.0°66.0°66.0°
F Fork Rake (mm) (inch)441.7441.7441.7441.7
G Trail (mm) (inch)113.94.4113.94.4121.74.8121.74.8
H Wheelbase (mm) (inch)111844114044.9113644.7115945.6
I Chain Stay Length (mm) (inch)43817.243817.243817.243817.2
J Bottom Bracket Drop (mm) (inch)602.4602.4602.4602.4
K Stack (mm) (inch)60823.961724.361824.362724.7
L Reach (mm) (inch)39315.541016.14061642516.7
M Stand Over Height (mm) (inch)61324.1661266612671228
N Handlebar Width (mm) (inch)76029.976029.976029.976029.9
O Stem Length (mm) (inch)401.6401.6401.6502
P Crank Length (mm) (inch)1656.51706.71706.71706.7
Q Wheel Size 27.5"27.5"29"29"
Specs
  • Sizes
    27.5": XS, S, 29": S, M, L
  • Colours
    Frost Silver, Tyrian Purple
  • Frame
    ALUXX SL-grade aluminum, 12x148 thru-axle
  • Fork
    Giant STL 34, RCL, 140mm, 44mm offset, Boost 15x110
  • Shock
    N/A
  • Handlebar
    Giant Contact TR35, 20mm rise, alloy 27.5": XS: 760mm, S: 760mm 29": S: 760mm, M: 760mm, L: 780mm
  • Grips
    Liv Sole-O
  • Stem
    Giant Contact SL 35 27.5": XS: 40mm, S: 40mm 29": S: 40mm, M: 50mm, L: 50mm
  • Seatpost
    Giant Contact Switch AT dropper, remote27.5":XS: 70-100mm travel / 30.9 x 315mmS: 70-100mm travel / 30.9 x 315mm29":S: 70-100mm travel / 30.9 x 315mmM: 110-140mm travel / 30.9 x 395mmL: 110-140mm travel / 30.9 x 395mm
  • Saddle
    Liv Sylvia
  • Shifters
    Shimano Cues SL-6000, 1x10
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano CuesRD-U6000, Shadow+
  • Brakes
    Shimano BR-MT420, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm
  • Brake Levers
    Shimano MT-401
  • Cassette
    Shimano CUES, CS-LG300, 11x48
  • Chain
    KMC X-11
  • Crankset
    Shimano CUES FC-U6000, 30t 27.5": XS: 165mm, S: 170mm 29": S: 170mm, M: 170mm, L: 170mm
  • Bottom Bracket
    Shimano, threaded
  • Rims
    27.5": Giant AM 27.5, tubeless ready, sleeve-joint rim, 30mm inner width 29": Giant AM 29, tubeless ready, sleeve-joint rim, 30mm inner width
  • Hubs
    alloy, sealed
  • Spokes
    Sapim
  • Tires
    (F) DHF 27.5x2.5" (R) Maxxis Dissector 27,5x2.4
  • Extras
    27.5": tubeless prepared, max tire size 2.6", max chainring size 32t 29": tubeless prepared, max tire size 2.5", max chainring size 32t
  • Weight
    The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
